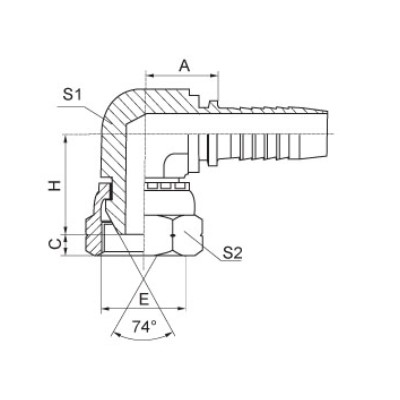

90° 美制短身JIC內(nèi)螺紋74° 內(nèi)錐面
|
代號 |
螺紋 E |
軟管 |
尺寸 |
|||||
|
公稱內(nèi)徑 |
標號 |
A |
C |
H |
S1 |
S2 |
||
|
26791K-04-04 |
7/16"X20 |
6 |
4 |
17.5 |
9 |
18 |
11 |
15 |
|
26791K-06-04 |
9/16"X18 |
6 |
4 |
19 |
10.5 |
21 |
14 |
19 |
|
26791K-06-06 |
9/16"X18 |
10 |
6 |
20 |
10.5 |
21 |
16 |
19 |
|
26791K-08-06 |
3/4"X16 |
10 |
6 |
23 |
11 |
25 |
19 |
24 |
|
26791K-08-08 |
3/4"X16 |
11 |
8 |
23.5 |
11 |
25 |
22 |
24 |
|
26791K-10-08 |
7/8"X14 |
12 |
8 |
23.5 |
13 |
27.5 |
22 |
27 |
|
26791K-10-10 |
7/8"X14 |
16 |
10 |
25 |
13 |
27.5 |
22 |
27 |
|
26791K-12-12 |
1.1/16"X12 |
20 |
12 |
27.5 |
15 |
30 |
27 |
32 |
|
26791K-16-16 |
1.5/16"X12 |
25 |
16 |
43 |
16 |
34.3 |
33 |
41 |
|
注：1.表中代號用于編織軟管。 2.如需用于纏繞軟管代號改為 26792K-XX-XX. |
||||||||
