15691KSW
90° 布錐管旋轉外螺紋

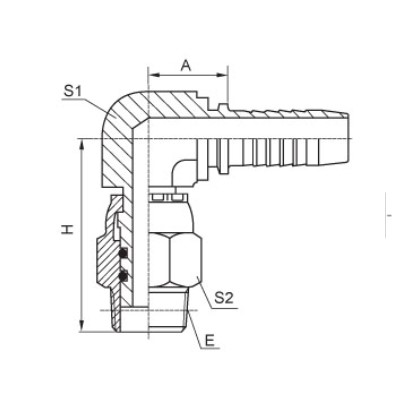

技術參數
|
代號 |
螺紋 E |
軟管 |
尺寸 |
||||
|
公稱內徑 |
標號 |
A |
H |
S1 |
S2 |
||
|
15691KSW-04-04 |
Z1/4"X18 |
6 |
4 |
25 |
59.5 |
16 |
19 |
|
15691KSW-06-06 |
Z3/8"X18 |
10 |
6 |
25 |
64.5 |
16 |
22 |
|
15691KSW-08-08 |
Z1/2"X14 |
12 |
8 |
28.5 |
71.5 |
19 |
27 |
|
15691KSW-12-12 |
Z3/4"X14 |
20 |
12 |
36 |
76.9 |
27 |
32 |
