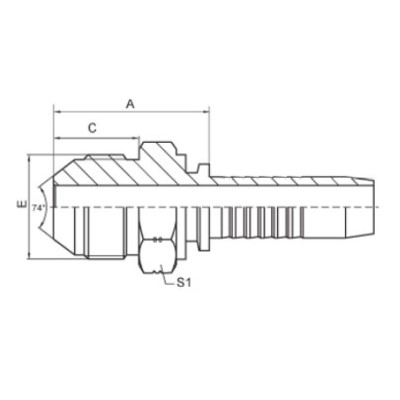

美制JIC外螺紋74° 外錐面
|
代號 |
螺紋 E |
軟管 |
尺寸 |
|||
|
公稱內徑 |
標號 |
A |
C |
S1 |
||
|
16711-04-03 |
7/16"X20 |
5 |
3 |
26 |
14 |
12 |
|
16711-04-04 |
7/16"X20 |
6 |
4 |
26.5 |
14 |
12 |
|
16711-05-04 |
1/2"X20 |
6 |
4 |
26.5 |
14 |
14 |
|
16711-05-05 |
1/2"X20 |
8 |
5 |
26.5 |
14 |
14 |
|
16711-05-06 |
1/2"X20 |
10 |
6 |
26.5 |
14 |
17 |
|
16711-06-04 |
9/16"X18 |
6 |
4 |
26.5 |
14.1 |
17 |
|
16711-06-05 |
9/16"X18 |
8 |
5 |
26.5 |
14.1 |
17 |
|
16711-06-06 |
9/16"X18 |
10 |
6 |
26.5 |
14.1 |
17 |
|
16711-08-06 |
3/4"X16 |
10 |
6 |
31.5 |
16.7 |
22 |
|
16711-08-08 |
3/4"X16 |
12 |
8 |
32 |
16.7 |
22 |
|
16711-10-06 |
7/8"X14 |
10 |
6 |
32 |
19.3 |
24 |
|
16711-10-08 |
7/8"X14 |
12 |
8 |
34.3 |
19.3 |
24 |
|
16711-10-10 |
7/8"X14 |
16 |
10 |
35.5 |
19.3 |
24 |
|
16711-12-08 |
1.1/16"X12 |
12 |
8 |
39 |
21.9 |
27 |
|
16711-12-10 |
1.1/16"X12 |
16 |
10 |
40 |
21.9 |
27 |
|
16711-12-12 |
1.1/16"X12 |
20 |
12 |
40 |
21.9 |
27 |
|
16711-12-16 |
1.1/16"X12 |
25 |
16 |
41 |
21.9 |
30 |
|
16711-14-10 |
1.3/16"X12 |
16 |
10 |
41.5 |
22.6 |
32 |
|
16711-14-12 |
1.3/16"X12 |
20 |
12 |
40.6 |
22.6 |
32 |
|
16711-16-12 |
1.5/16"X12 |
20 |
12 |
42.5 |
23.1 |
36 |
|
16711-16-16 |
1.5/16"X12 |
25 |
16 |
43.5 |
23.1 |
36 |
|
16711-20-16 |
1.5/8"X12 |
25 |
16 |
46.5 |
24.3 |
46 |
|
16711-20-20 |
1.5/8"X12 |
32 |
20 |
47.5 |
24.3 |
46 |
|
16711-24-20 |
1.7/8"X12 |
32 |
20 |
53 |
27.5 |
50 |
|
16711-24-24 |
1.7/8"X12 |
40 |
24 |
53 |
27.5 |
50 |
|
16711-32-32 |
2.1/2"X12 |
50 |
32 |
62 |
33.9 |
65 |
|
注：1.表中代號用于編織軟管。 2.如需用于纏繞軟管代號改為 16712-XX-XX. |
||||||
