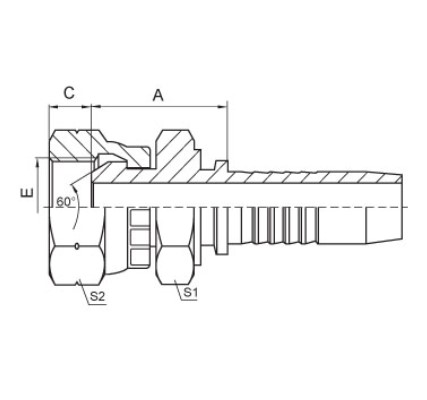

英管內螺紋60° 外錐面雙六角
|
代號 |
螺紋 E |
軟管 |
尺寸 |
||||
|
公稱內徑 |
標號 |
A |
C |
S1 |
S2 |
||
|
22611D-04-04 |
G1/4"X19 |
6 |
4 |
23.5 |
5.5 |
19 |
19 |
|
22611D-06-06 |
G3/8"X19 |
10 |
6 |
26.5 |
6.3 |
22 |
22 |
|
22611D-08-08 |
G1/2"X14 |
12 |
8 |
31 |
7.5 |
27 |
27 |
|
22611D-10-08 |
G5/8"X14 |
12 |
8 |
32 |
9.5 |
30 |
30 |
|
22611D-12-08 |
G3/4"X14 |
12 |
8 |
33 |
10.9 |
32 |
32 |
|
22611D-12-12 |
G3/4"X14 |
20 |
12 |
34 |
10.9 |
32 |
32 |
|
22611D-16-16 |
G1"X11 |
25 |
16 |
35.5 |
11.7 |
41 |
41 |
|
22611D-20-20 |
G1.1/4"X11 |
32 |
20 |
43.5 |
11 |
50 |
50 |
|
注：1.表中代號用于編織軟管。 2.如需用于纏繞軟管代號改為 22612D-XX-XX. |
|||||||
