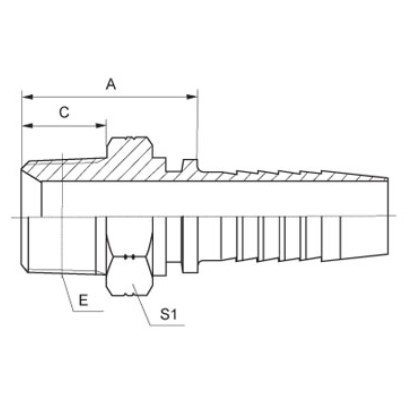

英錐管外螺紋
|
代號 |
螺紋 E |
軟管 |
尺寸 |
|||
|
公稱內徑 |
標號 |
A |
C |
S1 |
||
|
13011-02-03SP |
R1/8"X28 |
5 |
3 |
22 |
10 |
12 |
|
13011-02-04SP |
R1/8"X28 |
6 |
4 |
22.5 |
10 |
12 |
|
13011-04-04SP |
R1/4"X19 |
6 |
4 |
27 |
14.5 |
14 |
|
13011-04-05SP |
R1/4"X19 |
8 |
5 |
25 |
15.4 |
14 |
|
13011-04-06SP |
R1/4"X19 |
10 |
6 |
27 |
14.5 |
17 |
|
13011-06-04SP |
R3/8"X19 |
6 |
4 |
27.5 |
15 |
17 |
|
13011-06-05SP |
R3/8"X19 |
8 |
5 |
26.5 |
15 |
17 |
|
13011-06-06SP |
R3/8"X19 |
10 |
6 |
27.5 |
15 |
17 |
|
13011-06-08SP |
R3/8"X19 |
12 |
8 |
30 |
15 |
19 |
|
13011-08-06SP |
R1/2"X14 |
10 |
6 |
34.5 |
20 |
22 |
|
13011-08-08SP |
R1/2"X14 |
12 |
8 |
35 |
20 |
22 |
|
13011-08-10SP |
R1/2"X14 |
16 |
10 |
38 |
20 |
22 |
|
13011-08-12SP |
R1/2"X14 |
20 |
12 |
38 |
20 |
27 |
|
13011-12-08SP |
R3/4"X14 |
12 |
8 |
37 |
20 |
27 |
|
13011-12-10SP |
R3/4"X14 |
16 |
10 |
38 |
20 |
27 |
|
13011-12-12SP |
R3/4"X14 |
20 |
12 |
38.5 |
20 |
27 |
|
13011-12-16SP |
R3/4"X14 |
25 |
16 |
39.5 |
20 |
32 |
|
13011-16-12SP |
R1"X11 |
20 |
12 |
44 |
25.5 |
36 |
|
13011-16-16SP |
R1"X11 |
25 |
16 |
45 |
25.5 |
36 |
|
13011-20-20SP |
R1.1"/4X11 |
32 |
20 |
49.5 |
26.5 |
46 |
|
13011-24-24SP |
R1.1"/2X11 |
40 |
24 |
51.5 |
26.5 |
50 |
|
13011-32-24SP |
R2"X11 |
40 |
24 |
57 |
30 |
65 |
|
13011-32-32SP |
R2"X11 |
50 |
32 |
57 |
30 |
65 |
|
注：1.表中代號用于編織軟管。 2.如需用于纏繞軟管代號改為 13012-XX-XX. |
||||||
